Definition
Single metal barrier reduced for lateral side. System formed by a double wave barrier and C posts 4 metres apart.
Performance parameters
| Containment level | N2 | Working Width (W) | W4 | Impact Severity | A | Dynamic Deflection (D) | 1,1 m |
Profile
Components for sections of 4 m
| Ítem | Parts | Uds |
| 1 | Standard barrier of 4 m (Perforated at intervals of 1,33 m) | 1 |
| 2 | C post-125x70x18x4 de 1,400 mm | 1 |
| 3 | Washer Ø17 x35x4 mm | 8 |
| 4 | Hexagon nut M16 | 8 |
| 5 | Round head bolt M16x30 | 8 |
| 6 | Hexagon head cap bolt DIN 933 M10x40 quality 8.8 | 1 |
| 7 | Washer 40x40x5 mm Ø11 for M10 | 1 |
| 8 | Nut DIN 934 M10 quality 8 | 1 |
| 9 | Washer 100x40x5 with hole Ø11 for M10 | 1 |
| 10 | Reflector | 0,5 |

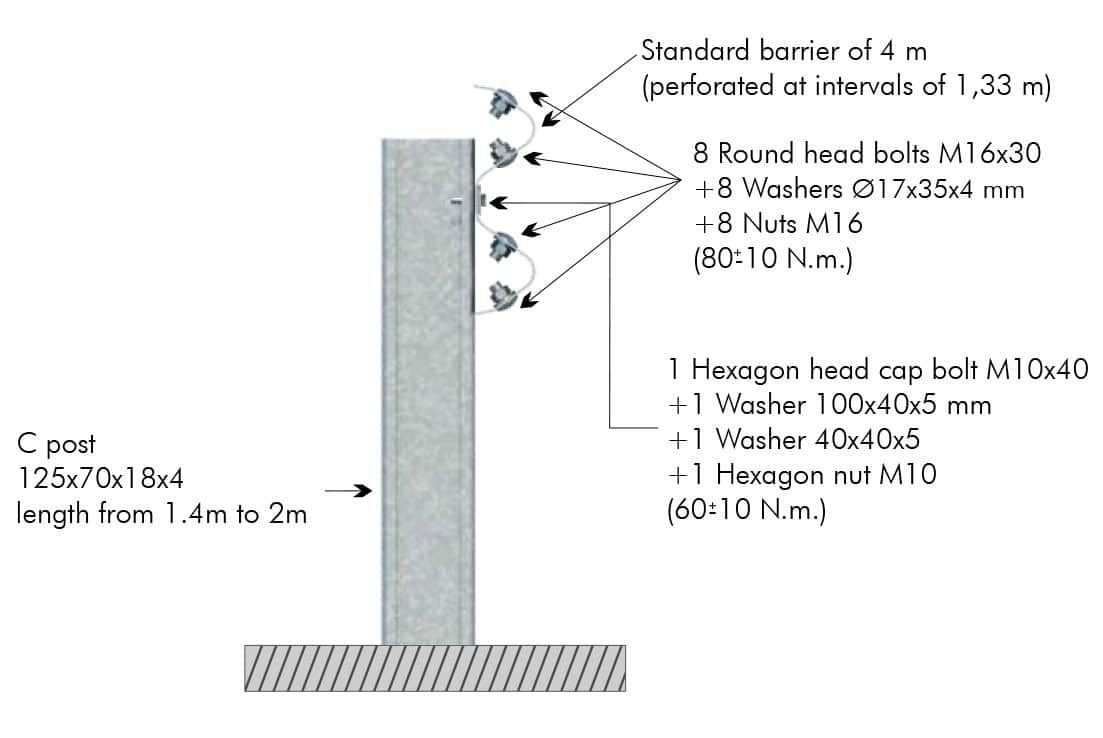

Fasteners
