Definition
Single metal barrier reduced for lateral side. System formed by a double wave barrier and U posts 2 metres apart.
Performance parameters
| Containment level (*) | H1 | Working Width (W) | W4 | Impact Severity | A | Dynamic Deflection (D) | 1.0 m |
(*)This system also has a L1 Containment Level as the TB-32 was tested as well.

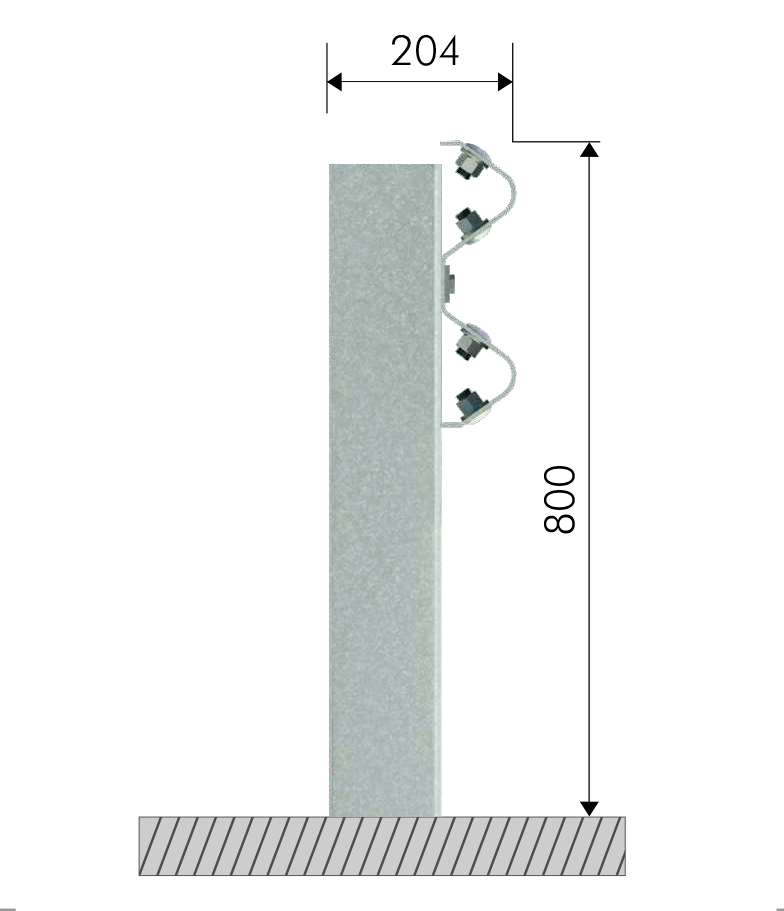

Profile
Components for sections of 4 m
| Item | Part | Units |
| 1 | Double wave barrier of 4 m | 1 |
| 2 | U post 123x70x4x1,650 mm | 2 |
| 3 | Reflector | 0,5 |
| 4 | Round head bolt M16x30, with nut | 8 |
| 5 | Hexagon head cap bolt M10x40 | 2 |
| 6 | M10 nut | 4 |
| 7 | Washer Ø17x 35×4 mm | 8 |
| 8 | Square washer 40x40x5 mm | 4 |
Fasteners
